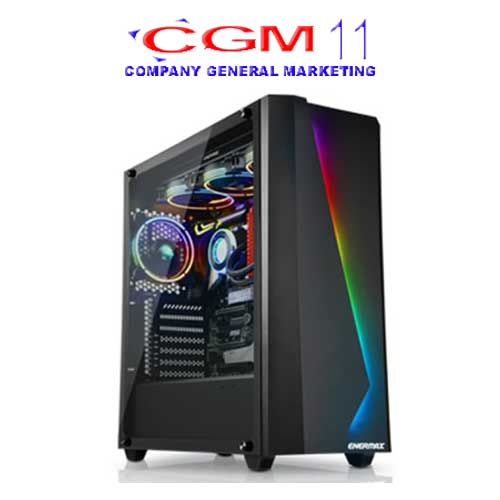

ENERMAX MAKASHI EXPANSION SLOT 7

Model Name ECA-MK50-BB-ARGB
Dimensions D452 x W212 x H495mm
Material SPCC, T=0.6mm
M/B Type E-ATX, ATX, Micro ATX, Mini ITX
LED Strips Addressable RGB
Pin assignment: 5V / D / – / G
I/O USB3.0 x 1, USB2.0 x 2, HD Audio, Lighting control
Drive Bays 3.5″ 2
2.5″ 6 (2 x Converted from 3.5”HDD tray)
Expansion Slots 7
Fan Slots Front 3 x 120mm
Top 2 x 140mm or 3 x 120mm
Rear 1 x 120mm (1 x 120mm fan pre-installed )
PSU Tunnel 1 x 120mm
Liquid Cooling Front 360mm / 240mm
Top 360mm / 280mm / 240mm
Rear 120mm
PSU 180mm / 200mm (Moving HDD cage forward)
Clearance Suggested VGA Card Length: 410mm
Suggested CPU Cooler Height: 160mm
